May 10, 2010 - MSF-Maker 2010.20 now has the capability (in all modules 1, 2 and 3) of drawing graphics (ternary diagrams) as well as producing two-dimensional tabular data of three-phase Kro, Krg and Krw estimated by the various models by:



Corey et al (1956),

Naar-Wygal (1962),

Land (1968),

Pope-Delshad (1989),

Parker-Lenhard-Kuppusamy (1987),

Baker (1988),

Lake (1986),

Parmeswar-Maerefat (1986),

Corey Type (1989),

Kalaydjian et al (1997),

Stone I and II (1970 & 1973) models, including modifications suggested by

††††††††† Dietrich-Bondor (1976),

††††††††† Aziz-Settari (1979),

††††††††† Aleman (1984),

††††††††† Kokal-Maini (1990),

††††††††† IKU Research (1997),

††††††††† Hirasaki (1970) and

††††††††† Nolen (1970ís).

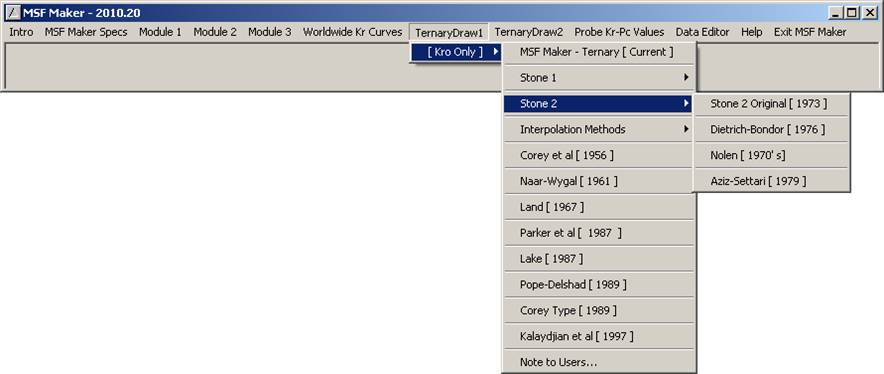

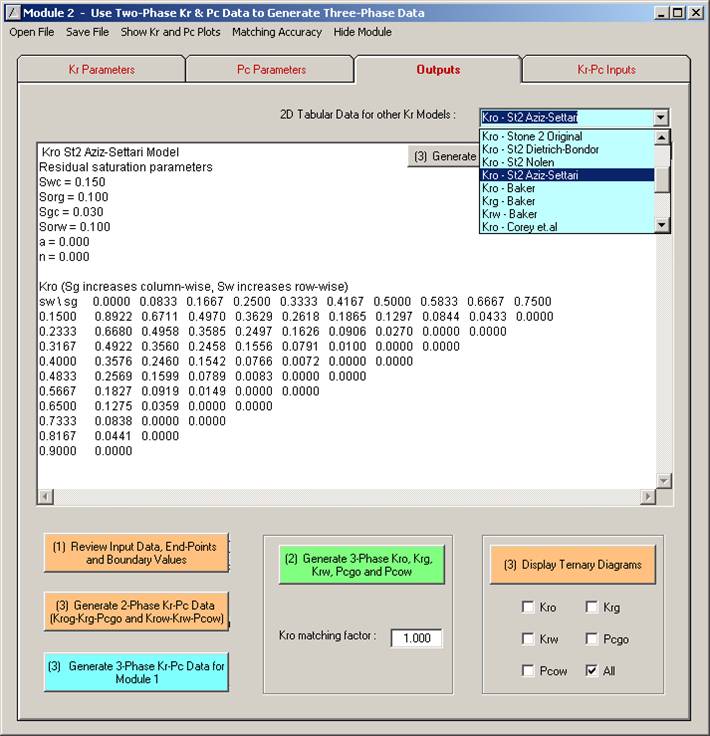

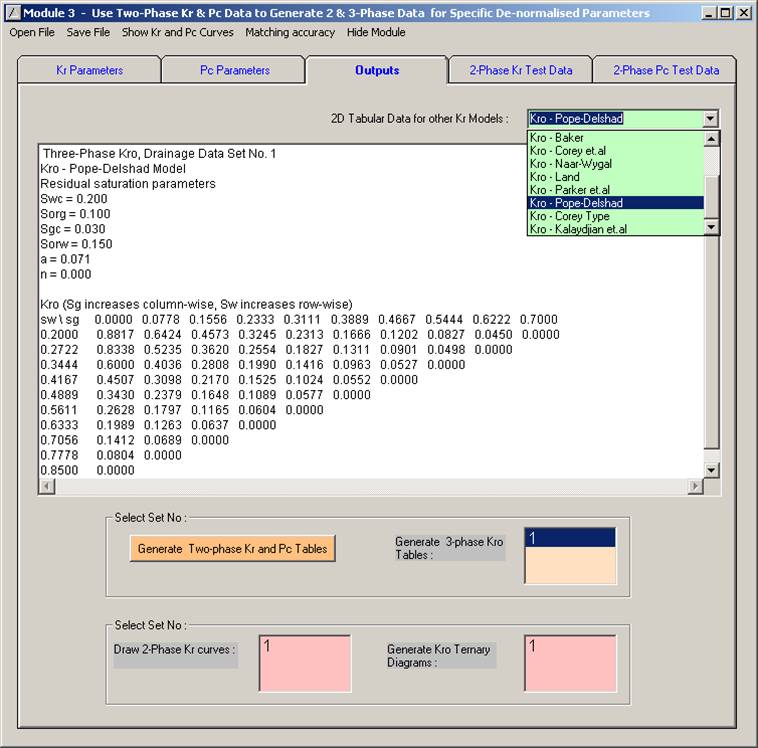

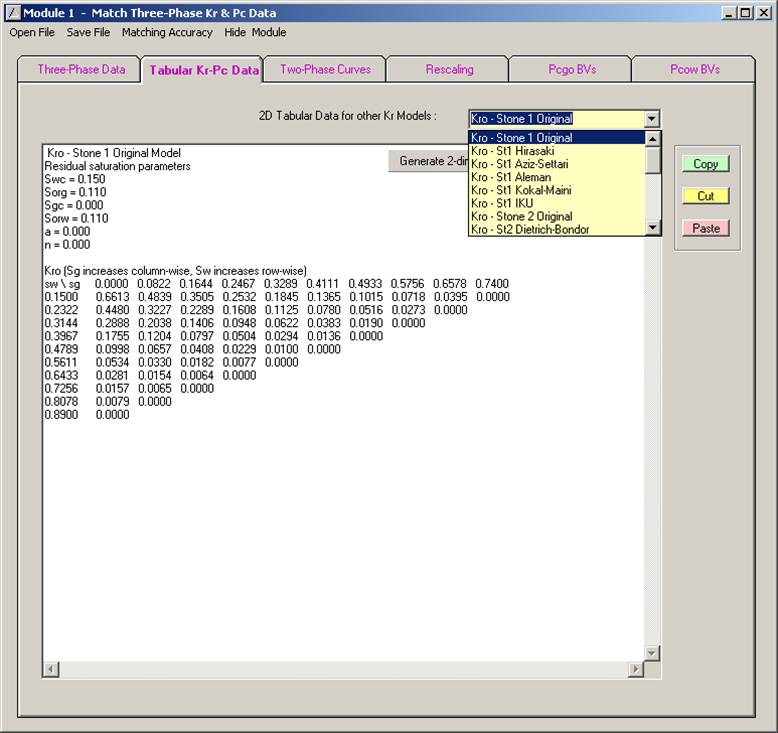

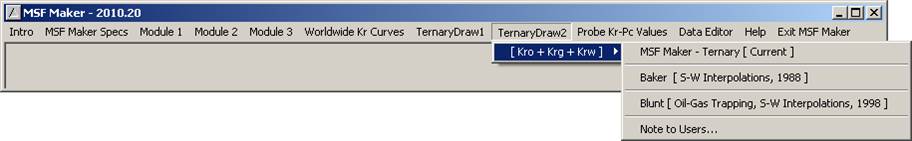

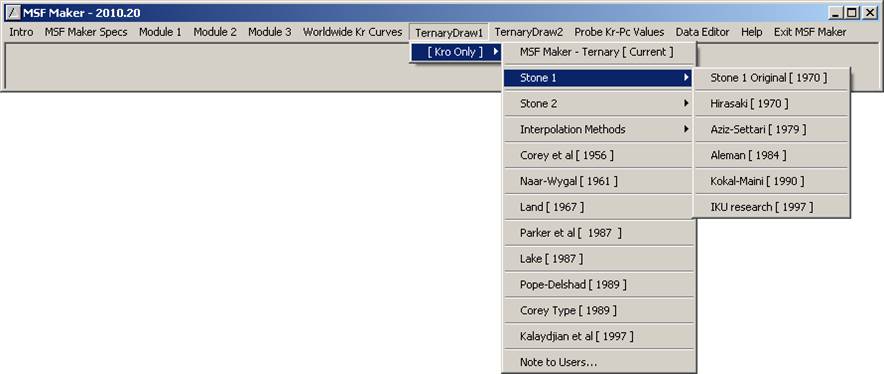

See illustrations below & you are welcome to try the software by downloading the installation file at http://www.msfmaker08.com/msf_dwnload.htm
